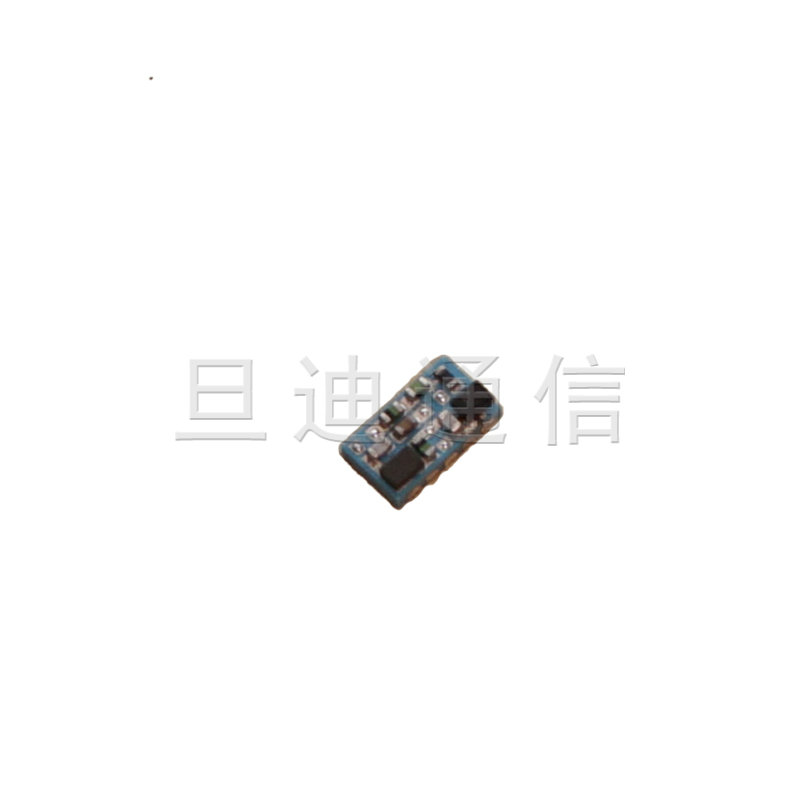

Product Introduction

Model：

LAM-A3256

Product Introduction：

Product Description ： 1、IPD miniaturization design ，support GPS/BD2/GLONASS band； 2、Miniaturization, high performance, low cost, high reliability， dimension：5.6mmX3.2mmX1.4mm； 3、LNA, SAW filters, chip capacitors, inductors

SLU0226DS
SLU0226DS
Product description
Product Description：
1、IPD miniaturization design ，support GPS/BD2/GLONASS band；
2、Miniaturization, high performance, low cost, high reliability，
      dimension：5.6mmX3.2mmX1.4mm；
3、LNA, SAW filters, chip capacitors, inductors and embedded LC capacitors, inductors;
4、The utility model can be widely used in a variety of portable handheld navigation and positioning equipment；

Product Dimension：

Product Introduction：
Antenna
Center Frequency
 1550～1610MHz
Gain
 16±2dB
Noise Figure
 1.5dB max
Ex-band Attenuation 40dB
Voltage DC 3.0~5.0V
Current 8±1 mA
1dB compression point output -8 dBm
Environmental Operating Temperature -40℃ to +85℃
Relative Humidity Up to 95℃
Environmentally Friendly ROHS Compliant

Pin Definition

Pin# Name Description Pin# Name Description
1 RFin RF input 6 GND Ground
2 GND Ground 7 GND Ground
3 GND Ground 8 GND Ground
4 3.3V supply voltage 9 GND Ground
5 GND Ground 10 RFout RF output
