Product Description ： 1、High performance, high sensitivity, support GPS、Beidou band； 2、Ultra small size，dimension：8.00mmX1.00mmX1.00mm； 3、The utility model can be widely used in WiFi, Bluetooth device terminal； Product D

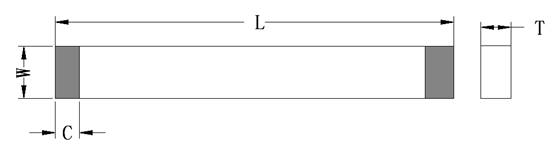

| L(mm) | 8.00±0.20 |
| W(mm) | 1.00±0.20 |
| T(mm) | 1.00±0.20 |
| Antenna |
Center Frequency |
1561/1575 MHz |
Bandwidth |
51MHz typ | |
Peak Gain |
1.53dBic typ | |
| V.S.W.R | 1.5dB max | |
| Impedance | 50Ω | |
| Azimuth Beamwidth | Omni-directional | |
| Mechanical | Radome Material | ceramics |
| Environmental | Operating Temperature | -40℃ to +105℃ |
| Relative Humidity | -40℃ to +105℃ | |
| Environmentally Friendly | ROHS Compliant |
