GGM-M03

Product Introduction：

Product Description ： 1、MediaTek MT3333； 2、High performance, low power consumption, small size, dimension：17.0mmX22.0mm X 3.0mm； 3、The utility model can be widely used in GLONASS Positioning Equipment； Product Dimension ：

Product description

Product Description：
1、MediaTek MT3333；
2、High performance, low power consumption, small size,
dimension：17.0mmX22.0mm X 3.0mm；
3、The utility model can be widely used in GLONASS Positioning Equipment；

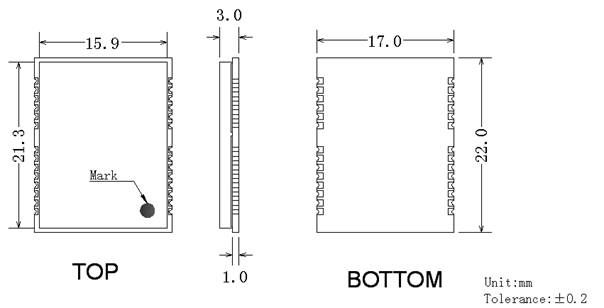

Product Dimension：

Product Introduction：

Chip	MediaTek MT3333
Frequency	GPS: L1 1575.42MHz,GLONASS: L1 1598.0625MHz ~ 1605.375MHz
Channels	Support 99 channels (33 Tracking, 99 Acquisition)
Update rate	1Hz default
Sensitivity	Tracking	-162dBm, up to -165dBm (with external LNA)
Sensitivity	Cold start	-143.5dBm, up to -148dBm (with external LNA)
Acquisition	Hot start (Open Sky)	1s (typical)
Acquisition	Cold Start (Open Sky)	33s (typical)
Position Accuracy	Autonomous	3m CEP(50%)
Limit value	Max. Altitude	< 18,000 m （Max）
Limit value	Max. Velocity	< 515 m/s （Max）
Protocol Support	NMEA 0183 V4.10	9600 bps, 8 data bits, no parity, 1 stop bits (default) 1Hz: GGA, GLL, GSA, RMC, VTG
Input Voltage	VCC	3.3±0.3V
Input Voltage	V_BCKP	2.0V~ 4.3V
Supply Current	Acquisition	40mA @3.3V (typical)
Battery Current	VCC=0V	15uA @(typical)
Temperature	Operating Temperature	-40 ~ +85℃
Temperature	Storage Temperature	-40 ~ +85℃
Weight	＜2g
